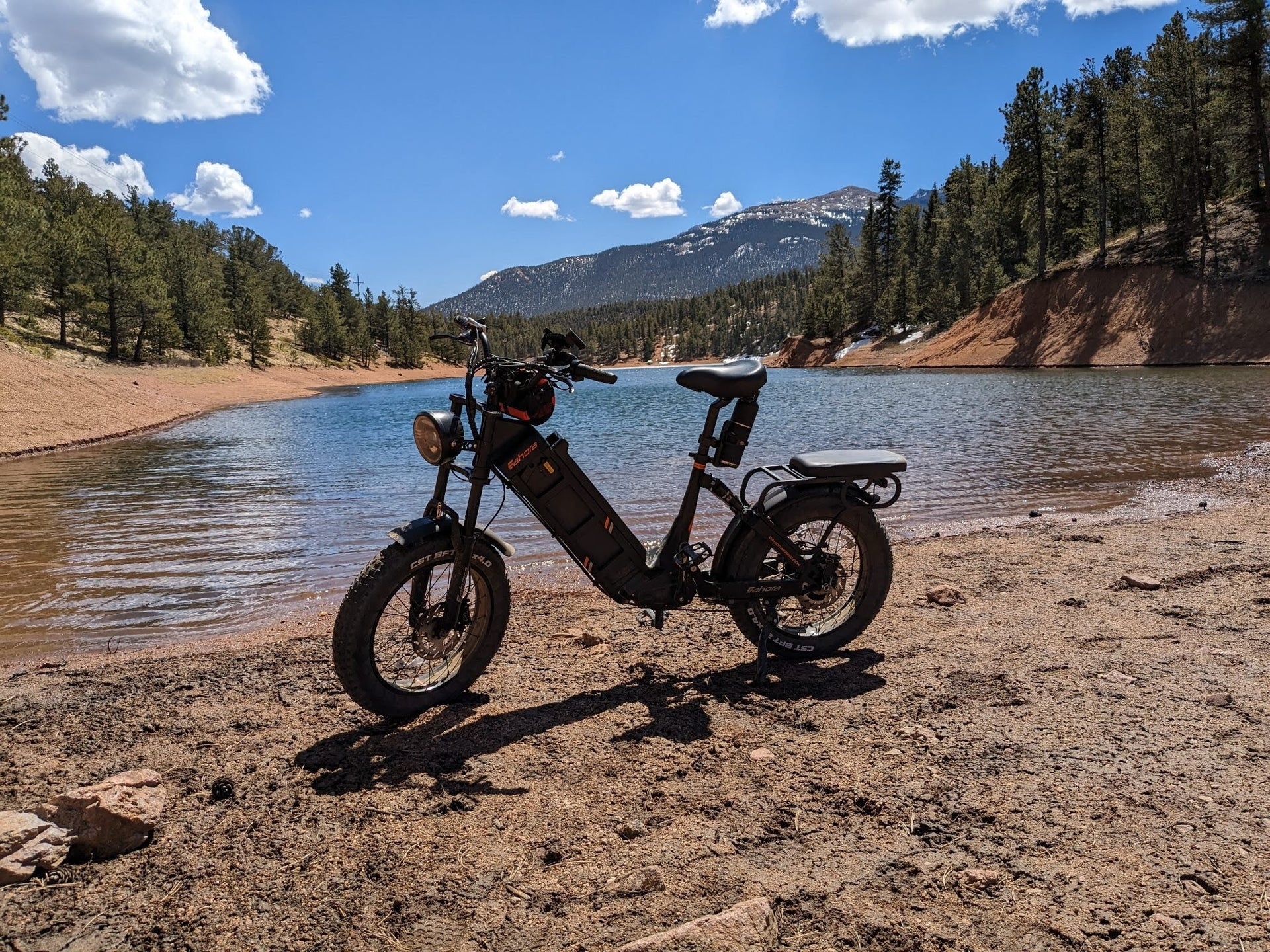

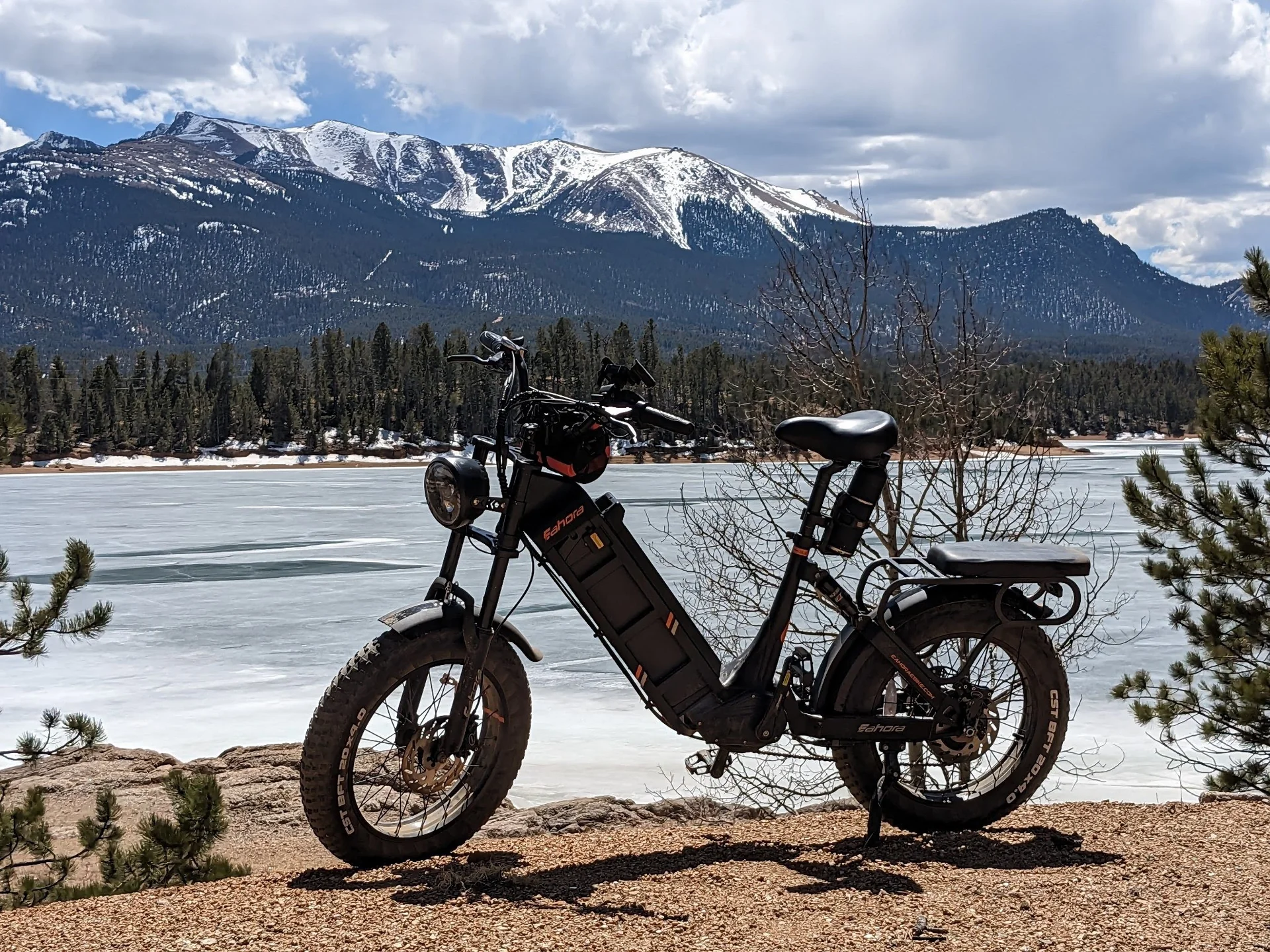

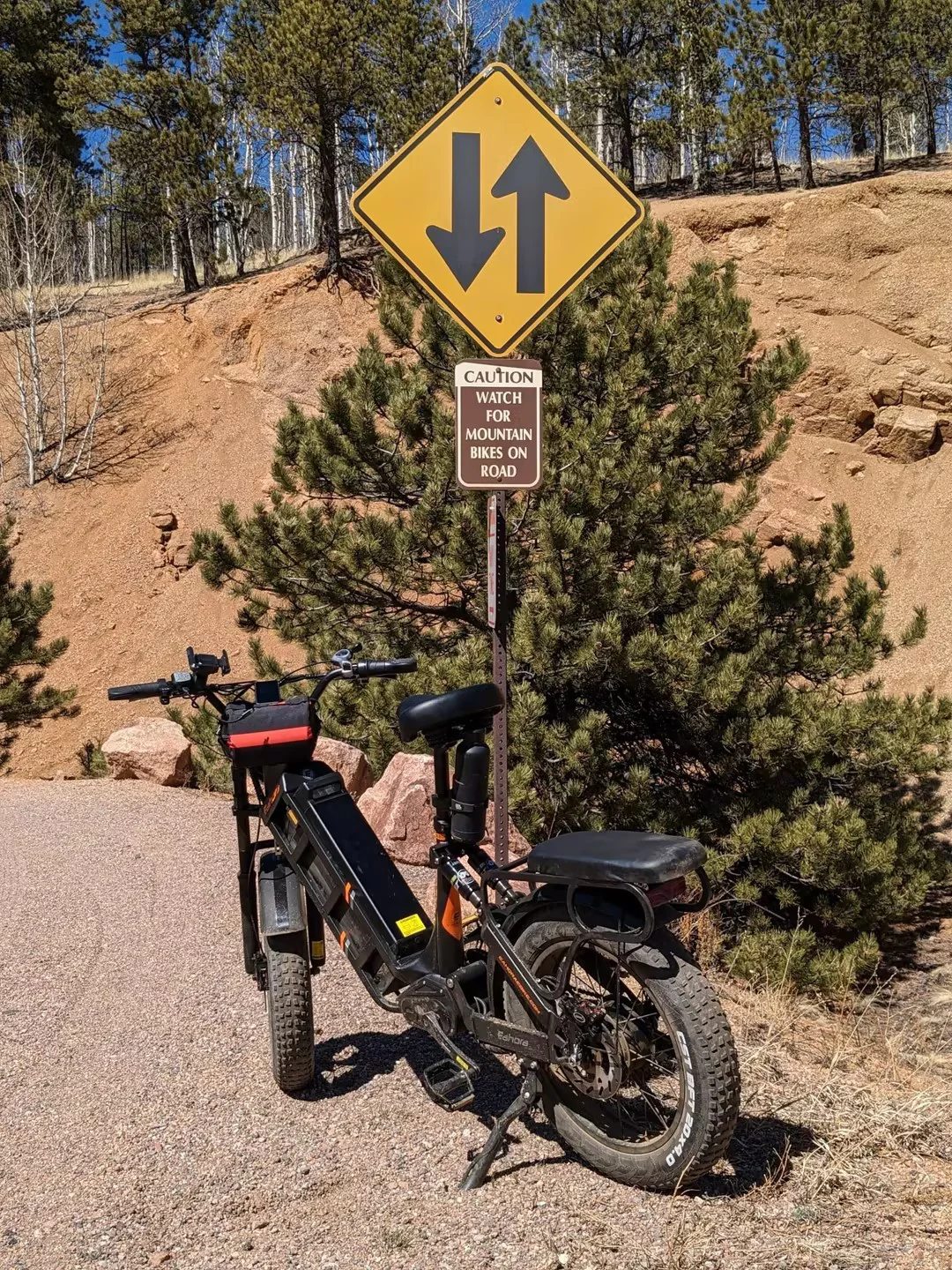

Eahora Juliet

General Information

• Top Speed : 25 – 28 mph for both pedal-assist and throttle.
• Range per Charge : 110 – 120 miles with PAS, or 78 – 84 miles w/o PAS
• Max Load : ≤ 330 lbs to ensure the performance and safety.
• Rider Height : 5’4″ – 6’1″, or inseam ≥ 26.8″.
• Bike Weight : 116 lbs with the battery (28 lbs) installed.
• Ideal Use : IPX6 weather-proof, off-road / mountain / urban riding.

Riding with Unmatched Power

• Battery Capacity : 2,880 Watt·hour (48V 60Ah).
• Cells Type : Lithium-ion pouch cells, Grade A.
• Battery Lifespan : ≥ 1200 charge cycles to 80% of capacity.
• Motor Power : 1,000W, or peak 1,200W.
• Motor Torque : 90 Newton·metre (max).
• Motor Type : Brushless rear hub motor, IPX6.
• PAS Levels : 5 Levels with Cadence Sensor.
• Throttle Type : 5 Levels twist, slightly delayed response (safe design).
• Display / Dashboard : 4″ color LCD, motors switch, Bluetooth, USB charge port.
• Shifting Gears : Shimano 7s 14-28T, 48T chainring.
• Battery Charger : 54.6V 8A Quick charger, 6-7.5H charge time.
• Additional Modes : Cruise Control, 6 km/h Walk.

Biking Safely & Confidently

• Brake System : Hydraulic disc brakes with motor cutoff.
• Brake Rotors : 180mm (φ)  x 3.0mm (t) steel rotors.
• Brake Caliper/Pads : 4-Piston calipers with semi-metallic pads.
• Bike Frame : High-carbon steel 20″ x 15″ frame.
• Front Fork : Adjustable 80mm tavel coil suspension.
• Shock Absorber : FASTACE dual coil suspension, 50mm travel.
• Head Light : 2,000 Lumens (20W)  LED with built-in horn.
• Tail Light : LED with integrated brake signal blinker.
• Additional Reflectors : Pedals, spokes, tires.
• Tire Type: CST BFT 20″ x 4.0″ tires with tube (28-33 psi).
• Saddle : Leather wide seat with memory foam.
• Handlebar : Aluminium 680mm x 31.8mm (φ, center), rise.

Components & Accessories

• Bell : Electric horn built-in headlight.
• Crank set : 170mm Aluminium, 48T chainring with cover.
• Pedals : WELLGO 16/9 aluminium alloy platform.
• Derailleur : SHIMANO RD-TY300 7 speed.
• Shifter : SHIMANO ASLTX50R7CT 22.2mm x 2400mm.
• Freewheel / Cassette : SHIMANO MF-TZ500-7 14-28T.
• Rims : 36H aluminium alloy rims.
• Spokes : Black stainless steel.
• Grips : 120mm x 22.2mm (φ) rubber, anti-slip.
• Seat post : Aluminium sea post with 38.1mm clamp.
• Headset : Integrated threadless headset.
• Stem : 31.8mm (φ, handlebar) * 35° A-head.
• Kickstand : Aluminium alloy heavy-duty.
• Racks & Basket : Optional rear rack, basket.
• Fenders : Included plastic front and rear fenders.
